Migrate kubernetes embedded etcd to external etcd - easy back and forth switch

Gist:

Create a multi-master kubernetes cluster from the comfort of a shell menu without tweaking a thing. Front the apiservers with load balancer of your choice - namely haproxy/nginx/envoy. Do hassle free back and forth switch between embedded etcd and external etcd.

In this post, we discuss kube-etcd-switch - which is not quite a tool rather a bunch of scripts behind a shell menu that help us to do all the above in a hassle free manner.

Curious? Read on then. But you have been forewarned - it might not be your cup of tea.

Kubernetes treats pods as cattle - they are discarded if not healthy. No effort is wasted on reviving unhealthy pods - instead new ones are created to replace the bad ones.

Kubernetes is conjoined with etcd by an umbilical chord. Etcd stores kubernetes schema and state. Kubernetes is useless without etcd(as things stand currently). At times - it can be quite a challenge to bring up a kubernetes cluster if etcd starts throwing its tantrums. For example - you want to remove an etcd node because it has gone bad - but etcd cluster would not let you do that because the node is not up yet. Quite a vexatious situation to be in.

So, what do we do in such a chicken and egg situation? Well, follow the same kubernetes philosophy - we discard the etcd cluster ( Not the cluster itself - we have compunction - mechanical sympathy. Instead we scrap etcd ) - create a new one to replace the faulty one. We treat everything as cattle - no pets. If a piece of software is not crunching data and providing information - it is not serving its cause - it's redundant.  Below we provide a glimpse of how we do that. That is, of course, as long as we have data at our hands, a backup or a snapshot - we care for data - it's valuable - amorphous gold.

First up, we need a kubernetes cluster - kube-etcd-switch can interface with any existing kubernetes cluster - but here we show how to setup a k8s cluster as well because we don't have one at hand currently and we need a cluster for the show to go on.

Requirements: A set of machines (Debian buster/ubuntu16/18/20 flavor) with root SSH access.

Here, we use four machines - one for load balancer(lb), two for kubernetes master nodes(m-1,m-2), one worker(w-1) node.

We run everything from the load balancer node.

1) Clone the following GitHub repository - go inside and launch the 'cluster.sh' script.

git clone https://github.com/ratulb/kube-etcd-switch

cd kube-etcd-switch/

./cluster.sh

We would be presented with menu which has quite a few choices as shown

We need a cluster - hence we make the appropriate selection and get on with the cluster setup process driven by the menu choices.

2) We enter the cluster details such as load balancer, master nodes and worker node. Following few snaps capture the steps.

3)  Load balancer details

4) Next we enter master and worker details:

5) Next we select option to launch the cluster creation process. This would provide us with running kubernetes cluster in a matter of minutes with weave CNI plugin and demo nginx pod deployed.

6) Following snap shows the end result of cluster creation:

7) Next is the initialization step. For k8s-etcd-switch to work with any cluster it needs to be initialized first. We need to provide the master IP (or name) of any one of the masters for this.  k8s-etcd-switch will query the cluster - gather information such a master members, copy ETCD CA cert and setup kubectl, cloudflare CFSSL and other required binaries to perform its duties. The initialization process can be repeated - it is idempotent. The initialization process is minimum once per servers' certificate rotation.

Following snaps show the initialization choices.

Note: Above we see that master endpoints are already detected - that is because k8s setup has already configured kube config. It will not be so for a pre-existing cluster. Initialization would be needed in either case.

8) Post initialization k8s-etcd-switch show cluster's system pod states. Now it can talk to the kubernetes cluster.

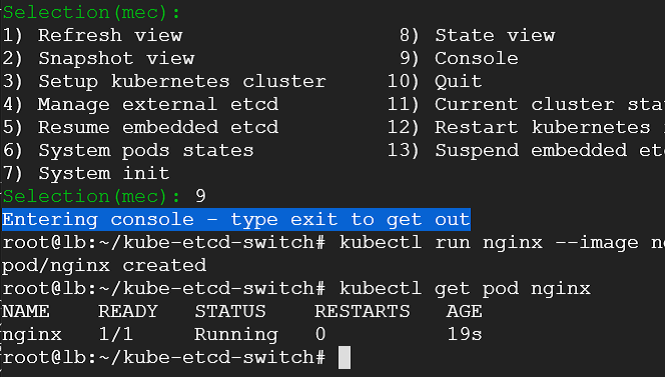

9) At this point - our cluster is pristine ( it would not be so for an existing cluster ). Lets go ahead and deploy a demo nginx pod in the default namespace. We select console and deploy the pod.

10) We see that our nginx pod is running along with demo pods that were deployed during the cluster creation process.

11) We want to survive cluster failure whether kubernetes or etcd. Kubernetes is done deal - we have shown it above. Etcd would be without it's salt - if it did not have data. But now it has data - whole kubernetes cluster's schema and state - that also contains our freshly deployed nginx pod's information. We need that data - we want to preserve it to survive cluster failure - computation calamity.

We exit out of the console - that would take us back to where we were before. We select snapshot view from the menu - we would be presented with an option to choose between embedded and external etcd cluster. Presently, we do not have an external cluster. We choose embedded and take a snapshot.

12) With a snapshot in hand - we are safe. We heave a sigh of relief. We are ready to combat disaster. We want put our conviction to test - we want to simulate a catastrophe and survive through it - making ourselves doubly reassured that we can infuse life back into etcd in the event of a cluster failure.

We head back to the main menu - choose console (this can be done from a usual terminal - there is no difference  - but we want to be in the context of the menu - hence choose console anyway)  and the run the script shown in the following snap. This script will wreak havoc on our cluster - it will wipe out our cluster and render it useless. All data would be  expunged. Only the static pods would be running meekly with utter indifference. Had it been a production cluster - business would have come to a grinding halt. Some may be updating their resumes - freshening up on the tricks of the trade. Yet some others may be philosophizing what life is all about - consequences may be far and beyond one's imagination - all due to a failed etcd cluster(pun intended 😜).

Cluster demolition in progress:

Total annihilation:

13) Now that our cluster is decimated, we want to bring it back to life using the snapshot that we had taken. We can - and we would restore the snapshot on top of embedded etcd cluster - but first we would launch an external etcd cluster and restore the snapshot on top of it and verify that api servers are responding as expected.

We exit from the console and go back to main menu and choose 'Manage external etcd'

14) We proceed with external etcd cluster setup process. For this post, we choose to host the cluster on the load balancer and the worker node ( Digression: we can also imagine kubernetes master nodes being part of external etcd cluster. For that to happen - the stacked/embedded etcd would need to bottom out one by one giving external etcd space to be hosted as separate processes  on the master nodes).

15) The external etcd cluster is ready with required configurations and binaries but not yet started. It would be up once we restore the snapshot.

16) Lets go ahead and restore the snapshot. Following snaps capture the steps. We go back to snapshot view and select restore option.

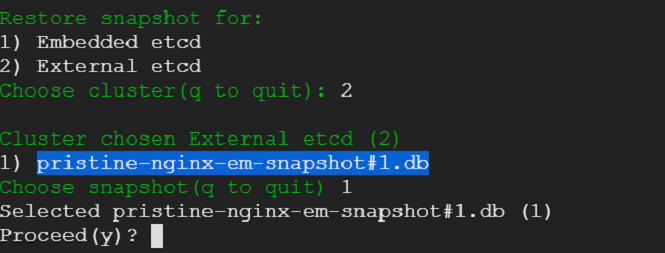

17) We choose external etcd as target cluster and select the snapshot that we had saved earlier.

18) We see snapshot restoration on external etcd cluster in progress.

19) Snapshot restoration on external etcd cluster is complete and system pods are up and running in a couple of minutes.

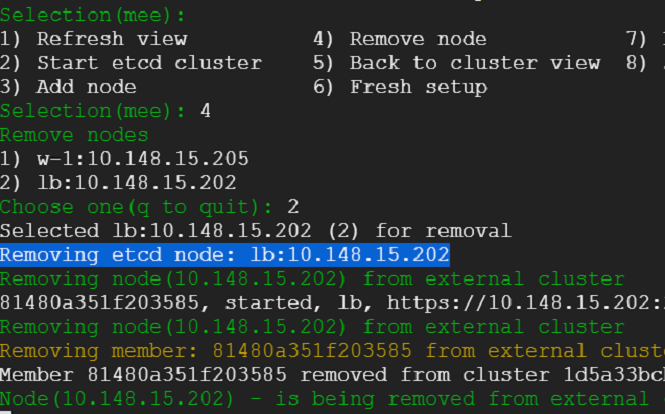

20) We have survived a disaster without a scratch. That was easy! Lets go ahead take out an etcd node for repair. Kubernetes cluster should suffer no hiccups.

21) There has been no hiccups for the cluster as we can see from the kube system pods. Embedded etcd cluster is still running but api servers are not pointing at them. They will have nothing in them - because when the disaster struck - they were hollowed out.

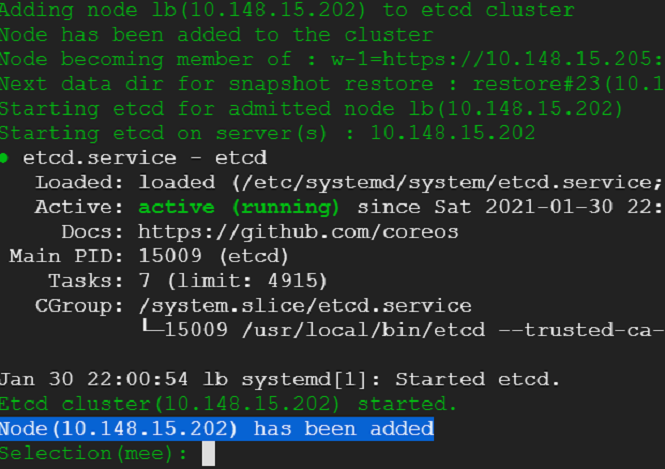

22) Node repaired. Lets add it back to the cluster again.

23) Repaired node has become a member of the cluster again.

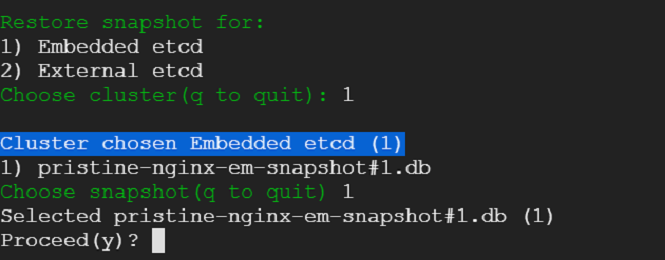

24) Lets bring the embedded etcd cluster back to live. We go back to snapshots view, select embedded cluster as restore target.

25) We see that our embedded cluster is back - and system pods are back too.

26) Our nginx pod should be back on the default namespace. Lets check that.

This effortless switch between two environments using snapshots opens the door for lot of use cases - disaster recovery, cluster replication, fail over, rapid development and testing, preview releases to just name a few.

What about the situation - where we have just restored a snapshot but would like to go back to the previous state we were in? Well, we would definitely take a backup snapshot before migration - and use that as fallback option. But in reality - snapshot always takes us to a new state - it creates new data directories, new configurations - its not exactly the same setup as before.

But we want to go back to the exact setup - we were in. Can we do that? Of course we can. We would need o manually alter settings and configurations. That would involve rounds of testing and verification. That is going to be error prone and not hassle free. Well, freedom from hassle is what k8s-kube-switch strives for.

As it turns out, these scripts can help us to go back to not only the previous state, but any previous state. As said, when we are restoring a snapshot, we are creating new restore paths and configurations and moving on to them - whether it is embedded or external etcd. We are leaving behind a trail of data directories and configurations. What it does is - any time we restore a snapshot, it looks at current settings and data directories across nodes and backs them all up in a single archive and saves it (Where? Currently underneath a directory called kube_vault - in the node where k8s-kube-switch runs. These archives can be easily be pushed to a safe storage and duplicated to prevent data loss).

We have not talked about states so far. States is the the mechanism that helps us to go back to any last good state. But it has challenges of its own. We are good if cluster topology remains same. We can just spread out the archived state across the nodes and resume etcd and kubernetes api servers. But what if nodes leave or new nodes are added to the etcd cluster? As we know - etcd does not like it if a node does not leave the cluster in good terms - it will not bury that hatchet otherwise. And talk of adding a node surreptitiously to the cluster - you have to dance a new dance to calm etcds' tantrums. States is a topic for another post, another day.

Conclusion:

We have covered a lot. We started with a fresh cluster setup, taken a snapshot, brought it to its knees, created an external etcd cluster, restored a snapshot on it - brought it to life, taken a node out of the cluster, added it back - and  finally switched back the kubernetes cluster to embedded etcd. We have also touched upon states.

Behind all this are a bunch of shell scripts. We can see what they are doing because we are close to the metal. They enable experimentation - We can choose the console option - tweak/improve/cookie cut the scripts to suit our needs - exit the console - refresh the view and see the effects.

Happy experimentation - if you wish.

Source: https://github.com/ratulb/kube-etcd-switch/blob/main/cluster.sh

VPC native kubernetes cluster in GCP

 VPC native k8s clusters have quite a few advantages:

• POD IPs are directly routable. This eliminates the need for a load balancer to hop from node to pod. Instead traffic can reach PODs directly minimizing latency.
• POD IPs are reserved before PODs are created. This helps avoid POD IP collision with existing resource IPs.
• Firewall rules can be configured for POD IP ranges instead of node IP ranges.
• POD IPs can be accessed from on-premise connected networks via VPN or cloud inter-connect.

VPC native cluster requires a subnet for cluster nodes, 2 secondary subnets inside the subnet for nodes - one for POD IPs and another for service IPs.

Commands to launch a VPC native k8s cluster quickly:

Create VPC network:

gcloud compute networks create gke --project=[project_id] --subnet-mode=custom --mtu=1460 --bgp-routing-mode=regional

Create subnet and secondary ranges for POD and services:

gcloud compute networks subnets create primary-subnet --project=[project_id] --range=10.0.0.0/8
--network=gke --region=asia-south1 --secondary-range=pod-subnet=172.16.0.0/12 --secondary-range=service-subnet=192.168.0.0/16

Launch the cluster:

gcloud container clusters create gke-cluster \
    --network gke \
    --enable-ip-alias \
    --subnetwork=primary-subnet \
    --cluster-secondary-range-name=pod-subnet \
    --services-secondary-range-name=service-subnet \
    --num-nodes 3 \
  --zone asia-south1-b

Initialize kubeconfig:

gcloud container clusters get-credentials gke-cluster --zone asia-south1-b

Deploy a nginx POD:

kubectl run nginx --image nginx

Expose POD via cloud load balancer:

kubectl expose pod nginx -l run=nginx --port 80 --type LoadBalancer

Access exposed POD via load balancer IP:

curl [load balancer IP]

grpc connect — rust, java and grpc-web

Gist: Route calls from browser(using grpc-web) to rust grpc application(implemented using tonic), which in turn delegates to java grpc and vice versa.

Note: We use latest versions of various libraries/binaries for this demonstration. One would be well advised to use disposable cloud VMs to carry out the steps demonstrated in this post. Verified for debian buster and various flavors of ubuntu.

Grpc offers many advantages — schema first design enforces well-defined interfaces, protobuf based binary protocol is performant, multiple requests over a single connection, implementation of clients and servers in multiple languages based on language specific artifacts generated by protoc compiler, bi-directional streaming etc.

In this post, however, we stick to a simple example of request and reply since our focus is on connectivity between different pieces. Following figure captures the request and response flow:



Note: It will help to clone the following GitHub project to follow along the steps described:

git clone https://github.com/ratulb/grpc-rust-java-web.git

Part 1: java and rust grpc connectivity

1. Following is the protobuf interface definition that rust/java/grpc-web use to generate language specific protocol buffer artifacts, clients and services

2. We implement the rust service first. We assume that rust is already installed.

3. We create the rust grpc server implementation within ../rust/server (refer to https://github.com/ratulb/grpc-rust-java-web/tree/main/rust/server).

cargo new server

4. We create a new folder called ‘proto’ inside the ‘server’ project created above and place the protobuf definition file ‘echo.proto’ inside that.

5. There are multiple grpc frameworks available in rust. We use tonic as rust grpc framework because of its feature completeness, contributor count and production readiness. Hence we edit the Cargo.toml file to include tonic with its dependencies.

6. To trigger the protobuf code generation we need to add a file named ‘build.rs’ inside the server folder with the following content.

7. At this point, we are ready to build the project. We run ‘cargo build’. Post build, we find that there is a echo.rs file generated inside the target directory.



 8. We add a src/echo.rs with content of the file as shown below:

tonic::include_proto!(“echo”);

9. Next we modify the src/main.rs file with content shown as below:



Note: The the content of https://github.com/ratulb/grpc-rust-java-web/blob/main/rust/server/src/main.rs file differs from the one shown above. That is because — once the rust grpc server receives a request — it will try to pass on the request to a java delegate if registered. Also, we need to make sure there is no endless delegation cycle. The rust implementation uses grpc request headers and the java implementation(https://github.com/ratulb/grpc-rust-java-web/blob/main/java/server/src/main/java/grpc/java/server/EchoServer.java) uses request header along with request interceptor to break the cycle.



10. At this point — we are ready to launch rust grpc server implementation by running “cargo run”.

11. Our rust server should be running at this point. We would be using ‘grpcurl’ to invoke the server.

12. We run the “grpc-curl.sh” script as shown below:

./grpc-curl.sh 0.0.0.0:30031

13. We should get back a response from the server.

14. At this point we should be able navigate to the ./rust/client folder and run the rust client implementation(https://github.com/ratulb/grpc-rust-java-web/blob/main/rust/client/src/main.rs) as shown below:

cargo run or just call ./run.sh

15. At this point — we should be able to navigate to ./java/server/ and ./java/client/ folders and run the ‘run.sh’ script in respective folders.

16. If both rust and java grpc servers are running — then running rust client should get a response from the java grpc server and vice versa — this would mean that rust and java grpc connectivity is working as expected.

Part 2: Envoy proxy

Note: Rust and java grpc do not need envoy proxy to connect to each other. They talk proper grpc which makes use of HTTP2 as the underlying transport protocol. We are just setting things up for what is coming next- Grpc-web.

1. Navigate to ./envoy folder and run ‘./setup.sh’ - this would install envoy proxy locally.
2. Next run ‘./runs.sh’. Envoy would start listening at port 10000. Envoy is configured to route request based on a request header called “target_cluster” . So grpc payload to envoy should carry the request header called “target-cluster” as part of grpc request metadata. Later we would see that grpc-web client is sending this header from the browser request. Based on the grpc request metadata header, the incoming request is routed to upstream rust or java grpc server.



3. For now we can navigate to ./java/server or ./rust/server folder and execute the ‘grpc-curl.sh’ script. We should be able to get a response back because these scripts are configured to send the target_cluster request header as shown below:



4. So far we have made sure that if we can deliver a grpc request payload to the envoy listening address, the request would be answered by either java or rust grpc server. Next, we would look at sending a grpc request from the browser.

Part 3: Grpc-web

As things stand currently, the browser does not talk grpc (though it supports HTT2 - and remember grpc != HTT2 ). Also, the browser does not expose APIs with enough control for request manipulation and make outgoing grpc request. So — that’s where grpc-web comes in — it is a JavaScript client library that facilitate connectivity between a browser application and grpc server. but grpc-web does not talk proper grpc either. It talks in terms of a protocol which makes it easy to change the conversation into proper grpc — which is what is done by the envoy proxy (by making use of a filter — “envoy.filters.http.grpc_web” —in ./envoy/envoy.yaml & ./envoy/envoy-local.yaml).

The overall process of making a grpc application available in the browser is as follows:

a) Generate JavaScript protobuf message classes and client stub for the client using protoc compiler from protobuf definition file.

b) Compile all the required libraries along with generated protobuf message classes and stub into one javascript library compatible with browsers. This can be achieved using tools like “browserify”, webpack etc. Optionally, we can minify the the compiled library. We are using webpack in this example.

c) Host client app(index.html) in a webserver (tomcat in our example).

d) Set up a proxy (envoy proxy) to intercept grpc-web request from the browser. Delegate the intercepted request to grpc server, gather response and send it back to the browser.

Detailed steps:

Note: We are using NodeJS packages npx and webpack-cli along with dependencies to compile required libraries and protobuf message classes and client stub into one single library. That’s why the installation of NodeJS and the dependencies.

1. Navigate to ./web folder and run the ‘./install-protoc.sh’ script — This would install ‘protoc’ and ‘protoc-gen-grpc-web’ required for generating javascript protobuf message classes and client stub from the protobuf definition.
2. Next, run the ‘./gen-js-proto.sh’ script. This would compile the proto/echo.proto definition and generate two output files — namely ‘echo_pb.js’ and ‘echo_grpc_web_pb.js’. We are using definitions from these two files in ‘client.js’.
3. Change the IP address in line 9 of ‘client.js’ to that of envoy proxy IP(if required). The javascript function “main” defined in client.js is being used in index.html. Note: IP address change is not required — if everything is running locally.
4. We are using NodeJS npx and webpack-cli along with dependencies to compile required libraries and protobuf message classes and client stub into one single library. Execute the “./setup-node-wp.sh” script install NodeJS and dependencies.
5. We would need a webserver to host our grpc-web client app(index.html). Navigate to ./web/tomcat/ directory and run ‘./setup.sh’. This would install tomcat server.
6. At this point, we are ready to deploy our client app(index.html) to tomcat server. We navigate to ./web folder and run “./deploy-app.sh”. This would compile all the javascript files into one single ./web/dist/main.js file followed by copying resources to ./web/tomcat../webapp/client directory.
7. At this point, we can navigate back to the project root folder and execute ‘./run.sh’. This would run rust and java grpc servers and tomcat and envoy proxy. We should be able to access the webpage at http://IP:8080/client (http://127.0.0.1:8080/client -if running locally) -where the IP is the address of the tomcat server ip address.
8. Browser should display a page as shown below. We should be able to select rust or java from the the drop down and call the grpc servers.



Format shell script

snap install shfmt

shfmt -i 2 -ci -w ./*.sh

Linus Torvalds on rust in linux

 https://www.zdnet.com/article/linus-torvalds-on-where-rust-will-fit-into-linux/

Algorithmic Muscle Excercise - maximum subsequence length in rust

Maximum sub-sequence length of 3 strings - bottom up approach:



Source: https://github.com/ratulb/algos_in_rust/blob/master/max_sub_sequence_bottom_up/src/lib.rs
